C.2.1 Structure chart

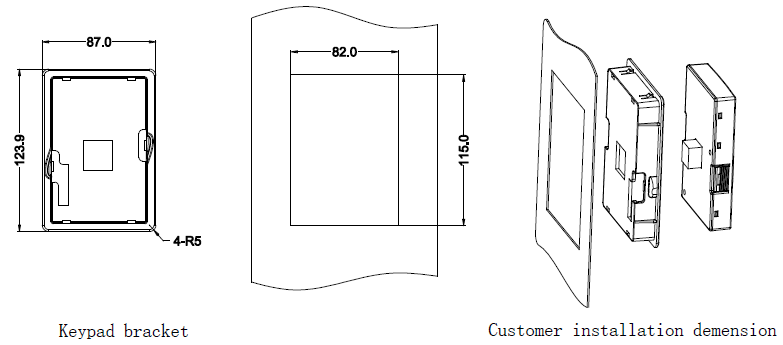

C.2.2 Installaiton with bracket (optional)

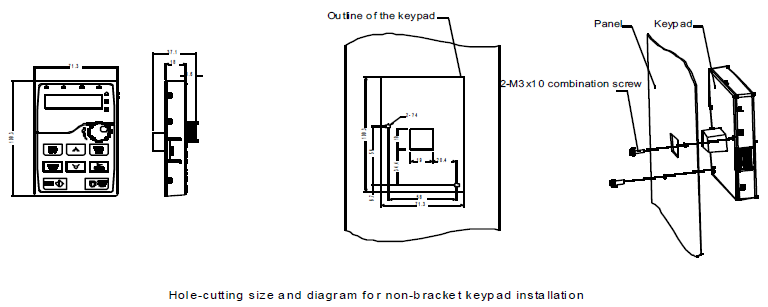

Note: It is necessary to use M3 screw or installation bracket to fix the external keypad. The installation bracket for VFDs of 380V 1.5–30kW and 500V 4–18.5kW is optional but it is standard for the VFDs of 380V 37–500kW, 500V 22–500kW and 660V.

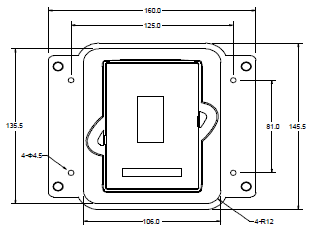

Installation with bracket for VFDs of 380V 1.5–315kW and 660 V 22–630kW (optional)

Installation with bracket for VFDs of 380V 37–315kW and 660 V 22–630kW (standard)
