P00.00

Speed

 control

 mode

0: Sensorless vector control mode 0 (apply to AM and SM)

No need to install encoders. It is suitable in cases   with low frequency, big torque and high speed control accuracy for accurate   speed and torque control. Compared to mode 1, this mode is more suitable for   medium and small power.

1: Sensorless vector control mode 1 (applying to AM)

No need to install encoders. It is suitable in cases   with high speed control accuracy for accurate speed and torque control at all   power ratings.

2: SVPWM control

No need   to install encoders. It can improve the control accuracy with the advantages   of stable operation, valid low-frequency torque boost and current vibration   suppression and the functions of slip compensation and voltage adjustment.

Note: AM: Asynchronous   motor,

SM: Synchronous motor;

Motor parameter autotuning must be performed on the VFD   first when the vector mode is used.

1

◎

P00.01

Running

 comm-

and

channel

Select   the run command channel of the VFD.

The   control command of the VFD includes: start-up, stop, forward, reverse,   jogging and fault reset.

0: Keypad   ("LOCAL/REMOT"   light off)

Carry out   the command control by RUN, STOP/RST on the keypad.

Set the   multi-function key QUICK/JOG to FWD/REVC shifting function   (P07.02=3) to change the running direction; press RUN and STOP/RST   simultaneously in running state to make the VFD coast to stop.

1: Terminal   ("LOCAL/REMOT"   flickering)

Carry out   the running command control by the forward rotation, reverse rotation and   forward jogging and reverse jogging of the multi-function terminals

2: Communication   ("LOCAL/REMOT"   on)

The   running command is controlled by the upper monitor via communication

0

○

P00.02

Communi-cation

running

 commands

Select   the controlling communication command channel of the VFD.

0: Modbus communication channel

1: PROFIBUS\CANopen communication channel

2: Ethernet communication channel

3: Reserved

Note: 1, 2   and 3 are extension functions which need corresponding extension cards.

0

○

P00.03

Max.

output

 freque-

ncy

This   parameter is used to set the maximum output frequency of the VFD. Users   should pay attention to this parameter because it is the foundation of the   frequency setting and the speed of acceleration and deceleration.

Setting range: P00.04–400.00Hz

50.00

Hz

◎

P00.04

Upper

limit

of the

run-

ning

freq-

uency

The upper   limit of the running frequency is the upper limit of the output frequency of   the VFD which is lower than or equal to the maximum frequency.

Setting range: P00.05–P00.03 (Max. output frequency)

50.00

Hz

◎

P00.05

Lower

limit of

 the

running

 freque-

ncy

The lower   limit of the running frequency is that of the output frequency of the VFD.

The VFD   runs at the lower limit frequency if the set frequency is lower than the   lower limit one.

Note: Max.   output frequency ≥ Upper limit frequency ≥ Lower limit frequency

Setting range: 0.00Hz–P00.04 (Upper limit of the running frequency)

0.00Hz

◎

P00.06

A

freque-

ncy

comm-

and

Note: Frequency A and   frequency B cannot use the same frequency setting mode. The frequency source   can be set by P00.09.

0: Keypad

Modify   the value P00.10 (set the frequency by keypad) to modify the frequency by the   keypad.

1: AI1

2: AI2

3: AI3

Set the   frequency by analog input terminals. Goodrive300 series VFDs provide 3 ways   analog input terminals as the standard configuration, of which AI1/AI2 are   the voltage/current option (0–10V/0–20mA) which can be shifted by jumpers;   while AI3 is voltage input (-10V–+10V).

Note: when analog   AI1/AI2 select 0–20mA input, the corresponding voltage of 20mA is 10V.

100.0% of   the analog input setting corresponds to the maximum frequency (function code   P00.03) in forward direction and -100.0% corresponds to the maximum frequency   in reverse  direction (function code   P00.03)

4: High-speed   pulse HDI setting

The   frequency is set by high-speed pulse terminals. Goodrive300 series VFDs   provide 1 high speed pulse input as the standard configuration. The pulse   frequency range is 0.00–50.00kHz.

100.0% of   the high speed pulse input setting corresponds to the maximum frequency in   forward direction (P00.03) and -100.0% corresponds to the maximum frequency   in reverse direction (P00.03).

Note:The pulse setting can only be input   by multi-function terminals HDI. Set P05.00 (HDI input selection) to high   speed pulse input, and set P05.49 (HDI high speed pulse input function   selection) to frequency setting input.

5: Simple   PLC program setting

The VFD runs at simple PLC program mode when P00.06=5   or P00.07=5. Set P10 (simple PLC and multi-step speed control) to select the   running frequency, running direction, ACC/DEC time and the keeping time of   corresponding stage. See the function description of P10 for detailed   information.

6: Multi-step speed running

The VFD runs at multi-step speed mode when P00.06=6   or P00.07=6. Set P05 to select the current running stage, and set P10 to   select the current running frequency.

The multi-step speed has the priority when P00.06 or   P00.07 does not equal to 6, but the setting stage can only be the 1–15 stage.   The setting stage is 1–15 if P00.06 or P00.07 equals to 6.

7: PID control setting

The running mode of the VFD is process PID control   when P00.06=7 or P00.07=7. It is necessary to set P09. The running frequency   of the VFD is the value after PID effect. See P09 for the detailed   information of the given source, given value, feedback source of PID.

8: Modbus   communication setting

The   frequency is set by Modbus communication. See P14 for detailed information.

9: PROFIBUS/CANopen   communication setting

The   frequency is set by PROFIBUS/ CANopen communication. See P15 for the detailed   information.

10: Ethernet   communication setting(reserved)

11: Reserved

0

○

P00.07

B

freque-

ncy

comm-

and

2

○

P00.08

B

freque-

ncy

comm-

and

refere-

nce

0: Max.   output frequency,  100% of

B   frequency setting  corresponds to the   maximum output frequency

1: A   frequency command, 100% of B frequency setting corresponds to the maximum   output frequency. Select this setting if it needs to adjust on the base of A   frequency command.

0

○

P00.09

Combin-

ation

 of

setting

sources

0: A, the   current frequency setting is A freauency command

1: B, the   current frequency setting is B frequency command

2: A+B,   the current frequency setting is A frequency command + B frequency command

3: A-B,   the current frequency setting is A frequency command - B frequency command

4: Max(A,   B): The bigger one between A frequency command and B frequency is the set   frequency.

5: Min (A,   B): The lower one between A frequency command and B frequency is the set   frequency.

Note: The combination   manner can be shifted by P5 (terminal function).

0

○

P00.10

Keypad

 set

frequ-

ency

When A   and B frequency commands are selected as "keypad setting", the   value of the function code is the original setting one of the frequency data   of the VFD.

Setting   range: 0.00 Hz–P00.03 (Max. frequency)

50.00

Hz

○

P00.11

ACC

time 1

ACC time   means the time needed if the VFD speeds up from 0Hz to the Max. One (P00.03).

DEC time   means the time needed if the VFD speeds down from the Max. Output frequency   to 0Hz (P00.03).

Goodrive300   series VFDs define four groups of ACC/DEC time which can be selected by P05.   The factory default ACC/DEC time of the VFD is the first group.

Setting   range of P00.11 and P00.12: 0.0–3600.0s

Depend on model

○

P00.12

DEC

time 1

Depend on model

○

P00.13

Run-

ning

direction

0: Runs   at the default direction, the VFD runs in the forward direction. FWD/REV   indicator is off.

1: Runs   at the reverse direction, the VFD runs in the reverse direction. FWD/REV   indicator is on.

Modify   the function code to shift the rotation direction of the motor. This effect   equals to the shifting the rotation direction by adjusting either two of the   motor lines (U, V and W). The motor rotation direction can be changed by QUICK/JOG   on the keypad. Refer to parameter P07.02.

Note: When the function parameter comes back to the   default value, the motor’s running direction will come back to the factory   default state, too. In some cases it should be used with caution after   commissioning if the change of rotation direction is disabled.

2: Forbid to run in reverse direction: It   can be used in some special cases if the reverse running is disabled.

0

○

P00.14

Carrier

freque-

ncy

setting

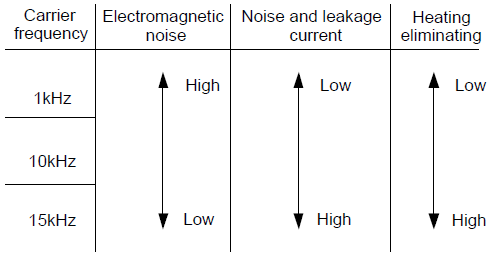

Relationship   between models and carrier frequencies

The   advantage of high carrier frequency: ideal current waveform, little current   harmonic wave and motor noise.

The   disadvantage of high carrier frequency: increasing the switch loss,   increasing VFD temperature and the impact to the output capacity. The VFD   needs to derate on high carrier frequency. At the same time, the leakage and   electrical magnetic interference will increase.

Applying   low carrier frequency is contrary to the above, too low carrier frequency   will cause unstable running, torque decreasing and surge.

The   manufacturer has set a reasonal carrier frequency when the VFD is in factory.   In general, users do not need to change the parameter.

When the   frequency used exceeds the default carrier frequency, the VFD needs to derate   10% for each additional 1k carrier frequency.

Setting   range: 1.0–15.0kHz

Depend on model

○

P00.15

Motor

param-

eter

autotu-

ning

0: No operation

1: Rotating autotuning

Comprehensive motor parameter autotune

It is recommended to use rotating autotuning   when high control accuracy is needed.

2: Static autotuning 1 (autotune totally);   It is suitable in the cases when the motor cannot de-couple form the load.   The antotuning for the motor parameter will impact the control accuracy.

3: Static autotuning 2 (autotune part   parameters); when the current motor is motor 1, autotune P02.06, P02.07, P02.08;   and when the current motor is motor 2, autotune P12.06, P12.07, P12.08.

0

◎

P00.16

AVR

funct-

ion

select-

ion

0: Invalid

1: Valid during the whole prodecure

The auto-adjusting function of the VFD can   cancel the impact on the output voltage of the VFD because of the bus voltage   fluctuation.

1

○

P00.17

Reserved

Reserved

0

◎

P00.18

Function

restore

param-

eter

0: No operation

1: Restore the default value

2: Cancel the fault record

Note: The   function code will restore to 0 after finishing the operation of the selected   function code.

Restoring to the default value will cancel   the user password, please use this function with caution.

0

◎
