Please check according to the installation list in Chapter 2.

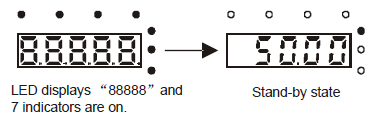

Check to ensure there is no mistake in wiring and power supply, switch on the air switch of the AC power supply on the input side of the VFD to power on the VFD. 8.8.8.8.8. will be displayed on the keypad, and the contactor closes normally. When the character on the nixie tubs changes to the set frequency, the VFD has finished the initialization and it is in the stand-by state.

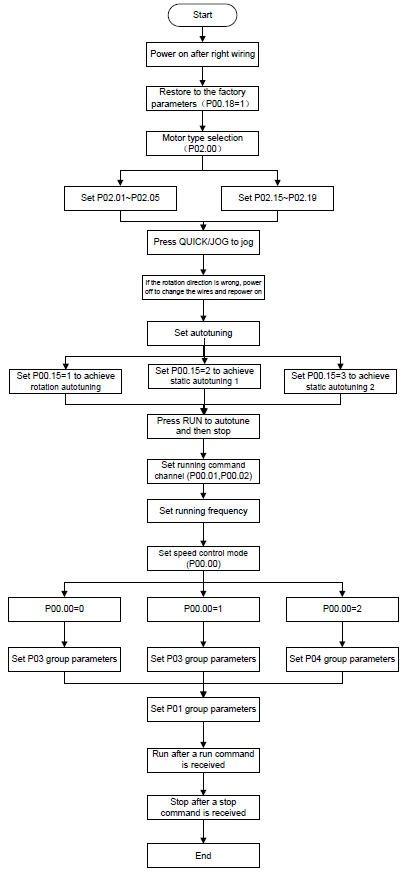

Below diagram shows the first operation: (take motor 1 as the example)
Note: If fault occurs, please do as the "Fault Tracking". Estimate the fault reason and settle the issue.
Besides P00.01 and P00.02, terminal command setting can also be used to set running command channel.
Current running command channel P00.01 | Multi-function terminal 36 Switch to keypad | Multi-function terminal 37 Switch to terminal | Multi-function terminal 38 Switch to communication |
Keypad running command channel | / | Terminal running command channel | Communication running command channel |
Terminal running command channel | Keypad running command channel | / | Communication running command channel |
Communication running command channel | Keypad running command channel | Terminal running command channel | / |
Note: "/" means the multi-function terminal is invalid on the current given channel.
Relative parameters table:
Function code | Name | Detailed instruction of parameters | Default value |
P00.00 | Speed control mode | 0: Sensorless vector control mode 0 (apply to AM and SM) 1: Sensorless vector control mode 1 (applying to AM) 2: SVPWM control | 2 |
P00.01 | Run command channel | 0: Keypad running command 1: Terminal running command channel ("LOCAL/REMOT" flickering) 2: Communication running command channel ("LOCAL/REMOT" on); | 0 |
P00.02 | Communication running commands | 0: Modbus communication channel 1: PROFIBUS\CANopen communication channel 2: Ethernet communication channel 3: Reserved | 0 |
P00.18 | Function restore parameter | 0: No operation 1: Restore the default value 2: Cancel the fault record | 0 |
P00.15 | Motor parameter autotuning | 0: No operation 1: Rotation autotuning 2: Static autotuning 1 (autotune totally) 3: Static autotuning 2 (autotune part parameters) | 0 |
P02.00 | Motor type 1 | 0: Asynchronous motor 1: Synchronous motor | 1 |
P02.01 | Rated power of asynchronous motor 1 | 0.1–3000.0 kW | Depend on model |
P02.02 | Rated frequency of asynchronous motor 1 | 0.01 Hz–P00.03 (max. output frequency) | 50.00 Hz |
P02.03 | Rated speed of asynchronous motor 1 | 1–36000 rpm | Depend on model |
P02.04 | Rated voltage of asynchronous motor 1 | 0–1200 V | Depend on model |
P02.05 | Rated current of asynchronous motor 1 | 0.8–6000.0 A | Depend on model |
P02.15 | Rated power of synchronous motor 1 | 0.1–3000.0 kW | Depend on model |
P02.16 | Rated frequency of synchronous motor 1 | 0.01 Hz–P00.03 (max. output frequency) | 50.00 Hz |
P02.17 | Number of poles pairs for synchronous motor 1 | 1–128 | 2 |
P02.18 | Rated voltage of synchronous motor 1 | 0–1200 V | Depend on model |
P02.19 | Rated current of synchronous motor 1 | 0.8–6000.0 A | Depend on model |
P05.01–P05.09 | Multi-function digital input terminals (S1–S8,HDI) function selection | 36: Shift the command to keypad 37: Shift the command to terminals 38: Shift the command to communication | |
P07.01 | Parameter copy | The function code determines the manner of parameters copy. 0: No operation 1: Upload the local function parameter to the keypad 2: Download the keypad function parameter to local address (including the motor parameters) 3: Download the keypad function parameter to local address (excluding the motor parameter of P02 and P12 group) 4: Download the keypad function parameters to local address (only for the motor parameter of P02 and P12 group) | 0 |
P07.02 | QUICK/JOG function selection | 0: No function 1: Jogging. Press QUICK/JOG to begin the jogging running. 2: Shift the display state by the shifting key. Press QUICK/JOG to shift the displayed function code from right to left. 3: Shift between forward rotations and reverse rotations. Press QUICK/JOG to shift the direction of the frequency commands. This function is only valid in the keypad commands channels. 4: Clear UP/DOWN settings. Press QUICK/JOG to clear the set value of UP/DOWN. 5: Coast to stop. Press QUICK/JOG to coast to stop. 6: Shift the given manner of running commands. Press QUICK/JOG to shift the given manner of running commands. 7: Quick commission mode (commission according to the non-factory parameter) | 1 |
