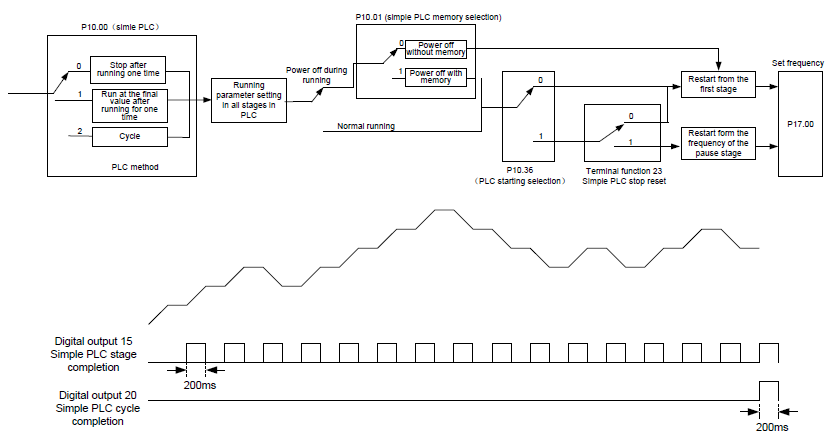

Simple PLC function is also a multi-step speed generator. The VFD can change the running frequency, direction to meet the need of processing according to the running time automatically. In the past, this function needs to be assisted by external PLC, but now the VFD can realize this function by itself.
The series VFDs can control 16-stage speed with 4 groups of ACC/DEC time.
The multi-function digital output terminals or multi-function relay output an ON signal when the set PLC finishes a circle (or a stage).
Relative parameters list:
Function code | Name | Detailed instruction of parameters | Default value |
P10.00 | Simple PLC | 0: Stop after running once 1: Run at the final value after running once 2: Cycle running | 0 |
P10.01 | Simple PLC memory | 0: Power loss without memory 1: Power loss with memory | 0 |
P10.02 | Multi-step speed 0 | -100.0–100.0% | 0.0% |
P10.03 | The running time of step 0 | 0.0–6553.5 s (min) | 0.0 s |
P10.04 | Multi-step speed 1 | -100.0–100.0% | 0.0% |
P10.05 | The running time of step 1 | 0.0–6553.5 s (min) | 0.0 s |
P10.06 | Multi-step speed 2 | -100.0–100.0% | 0.0% |
P10.07 | The running time of step 2 | 0.0–6553.5 s (min) | 0.0 s |
P10.08 | Multi-step speed 3 | -100.0–100.0% | 0.0% |
P10.09 | The running time of step 3 | 0.0–6553.5 s (min) | 0.0s |
P10.10 | Multi-step speed 4 | -100.0–100.0% | 0.0% |
P10.11 | The running time of step 4 | 0.0–6553.5 s (min) | 0.0 s |
P10.12 | Multi-step speed 5 | -100.0–100.0% | 0.0% |
P10.13 | The running time of step 5 | 0.0–6553.5 s (min) | 0.0 s |
P10.14 | Multi-step speed 6 | -100.0–100.0% | 0.0% |
P10.15 | The running time of step 6 | 0.0–6553.5 s (min) | 0.0 s |
P10.16 | Multi-step speed 7 | -100.0–100.0% | 0.0% |
P10.17 | The running time of step 7 | 0.0–6553.5 s (min) | 0.0 s |
P10.18 | Multi-step speed 8 | -100.0–100.0% | 0.0% |
P10.19 | The running time of step 8 | 0.0–6553.5 s (min) | 0.0 s |
P10.20 | Multi-step speed 9 | -100.0–100.0% | 0.0% |
P10.21 | The running time of step 9 | 0.0–6553.5 s (min) | 0.0 s |
P10.22 | Multi-step speed 10 | -100.0–100.0% | 0.0% |
P10.23 | The running time of step 10 | 0.0–6553.5 s (min) | 0.0 s |
P10.24 | Multi-step speed 11 | -100.0–100.0% | 0.0% |
P10.25 | The running time of step 11 | 0.0–6553.5 s (min) | 0.0 s |
P10.26 | Multi-step speed 12 | -100.0–100.0% | 0.0% |
P10.27 | The running time of step 12 | 0.0–6553.5 s (min) | 0.0 s |
P10.28 | Multi-step speed 13 | -100.0–100.0% | 0.0% |
P10.29 | The running time of step 13 | 0.0–6553.5 s (min) | 0.0 s |
P10.30 | Multi-step speed 14 | -100.0–100.0% | 0.0% |
P10.31 | The running time of step 14 | 0.0–6553.5 s (min) | 0.0 s |
P10.32 | Multi-step speed 15 | -100.0–100.0% | 0.0% |
P10.33 | The running time of step 15 | 0.0–6553.5 s (min) | 0.0 s |
P10.34 | Simple PLC 0–7 step ACC/DEC time | 0x0000–0XFFFF | 0000 |
P10.35 | Simple PLC 8–15 step ACC/DEC time | 0x0000–0XFFFF | 0000 |
P10.36 | PLC restart | 0: Restart from the first stage 1: Continue to run from the stop frequency | 0 |
P05.01–P05.09 | Digital input function selection | 23: Simple PLC stop reset 24: Simple PLC pause 25: PID control pause | |
P06.01–P06.04 | Digital output function | 15: Underload pre-alarm 16: Completion of simple PLC stage | |
P17.00 | Set frequency | 0.00 Hz–P00.03 (max. output frequency) | 0.00 Hz |
P17.27 | Simple PLC and present stage of the multi-step speed | 0–15 | 0 |
