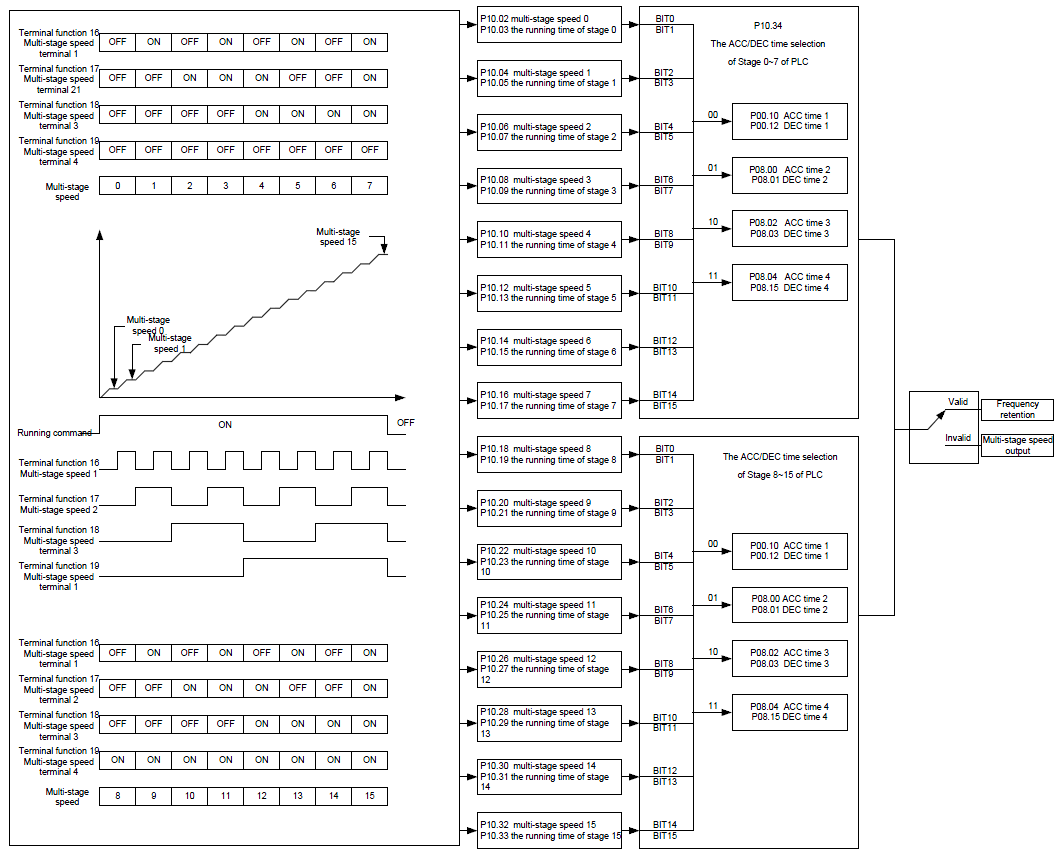

Set the parameters when the VFD carries out multi-step speed running. Goodrive300 series VFDs can set 16 stage speed which can be selected by the combination code of multi-step speed terminals 1–4. They correspond to multi-step speed 0 to 15.
Related parameters
Function code | Name | Detailed instruction of parameters | Default value |
P10.02 | Multi-step speed 0 | -100.0–100.0% | 0.0% |
P10.03 | Running time of step 0 | 0.0–6553.5s (min) | 0.0s |
P10.04 | Multi-step speed 1 | -100.0–100.0% | 0.0% |
P10.05 | Running time of step 1 | 0.0–6553.5s (min) | 0.0s |
P10.06 | Multi-step speed 2 | -100.0–100.0% | 0.0% |
P10.07 | Running time of step 2 | 0.0–6553.5s (min) | 0.0s |
P10.08 | Multi-step speed 3 | -100.0–100.0% | 0.0% |
P10.09 | Running time of step 3 | 0.0–6553.5s (min) | 0.0s |
P10.10 | Multi-step speed 4 | -100.0–100.0% | 0.0% |
P10.11 | Running time of step 4 | 0.0–6553.5s (min) | 0.0s |
P10.12 | Multi-step speed 5 | -100.0–100.0% | 0.0% |
P10.13 | Running time of step 5 | 0.0–6553.5s (min) | 0.0s |
P10.14 | Multi-step speed 6 | -100.0–100.0% | 0.0% |
P10.15 | Running time of step 6 | 0.0–6553.5s (min) | 0.0s |
P10.16 | Multi-step speed 7 | -100.0–100.0% | 0.0% |
P10.17 | Running time of step 7 | 0.0–6553.5s (min) | 0.0s |
P10.18 | Multi-step speed 8 | -100.0–100.0% | 0.0% |
P10.19 | Running time of step 8 | 0.0–6553.5s (min) | 0.0s |
P10.20 | Multi-step speed 9 | -100.0–100.0% | 0.0% |
P10.21 | Running time of step 9 | 0.0–6553.5s (min) | 0.0s |
P10.22 | Multi-step speed 10 | -100.0–100.0% | 0.0% |
P10.23 | Running time of step 10 | 0.0–6553.5s (min) | 0.0s |
P10.24 | Multi-step speed 11 | -100.0–100.0% | 0.0% |
P10.25 | Running time of step 11 | 0.0–6553.5s (min) | 0.0s |
P10.26 | Multi-step speed 12 | -100.0–100.0% | 0.0% |
P10.27 | Running time of step 12 | 0.0–6553.5s (min) | 0.0s |
P10.28 | Multi-step speed 13 | -100.0–100.0% | 0.0% |
P10.29 | Running time of step 13 | 0.0–6553.5s (min) | 0.0s |
P10.30 | Multi-step speed 14 | -100.0–100.0% | 0.0% |
P10.31 | Running time of step 14 | 0.0–6553.5s (min) | 0.0s |
P10.32 | Multi-step speed 15 | -100.0–100.0% | 0.0% |
P10.33 | Running time of step 15 | 0.0–6553.5s (min) | 0.0s |
P10.34 | Simple PLC 0–7 step ACC/DEC time | 0x0000–0XFFFF | 0000 |
P10.35 | Simple PLC 8–15 step ACC/DEC time | 0x0000–0XFFFF | 0000 |
P05.01–P05.09 | Digital input function selection | 16: Multi-step speed terminal 1 17: Multi-step speed terminal 2 18: Multi-step speed terminal 3 19: Multi-step speed terminal 4 20: Multi-step speed pause | |
P17.27 | Simple PLC and the current step of the multi-step speed | 0–15 | 0 |
