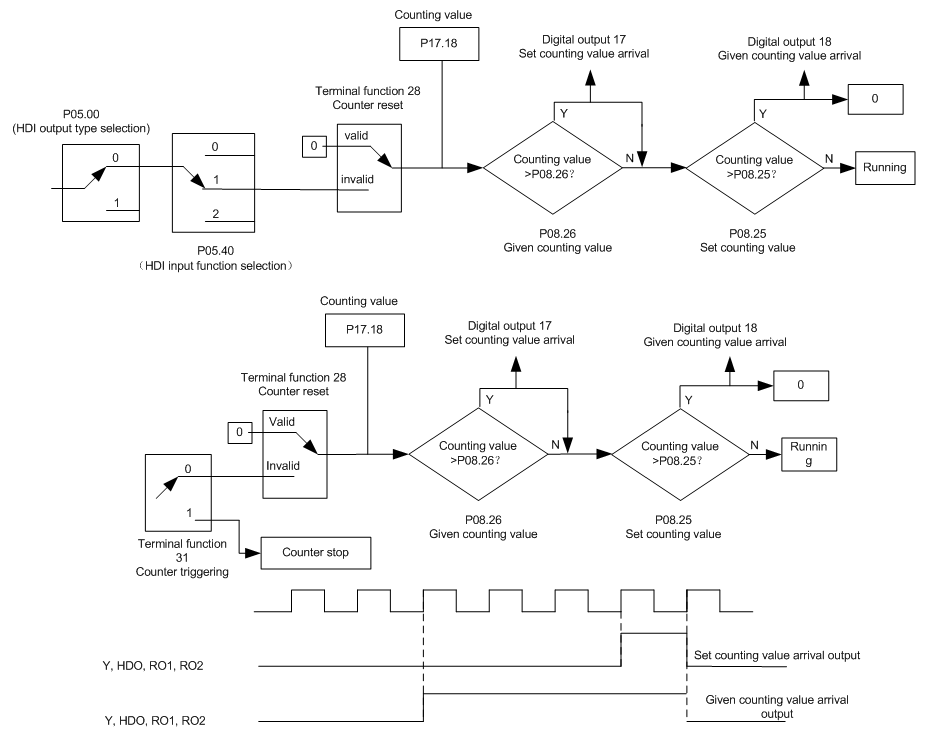

Goodrive310-UL series VFDs support pulse counter which can input counting pulse through HDI terminal. When the actual length is longer than or equal to the set length, the digital output terminal can output length arrival pulse signal and the corresponding length will clear automatically.
Function code | Name | Detailed instruction of parameters | Default value |
P05.00 | HDI input selection | 0: High pulse input. 1: Digital input. | 0 |
P05.40 | Corresponding setting of the upper limit of AI2 | 0 | |
P05.01– P05.09 | Digital input function selection | 28: Counter reset 31: Counter trigger | |
P06.01– P06.04 | Digital output function selection | 17: Completion of simple PLC cycle 18: Setting count value arrival | |
P08.25 | Setting counting value | P08.26–65535 | 0 |
P08.26 | Reference counting value | 0–P08.25 | 0 |
P17.18 | Counting value | 0–65535 | 0 |
