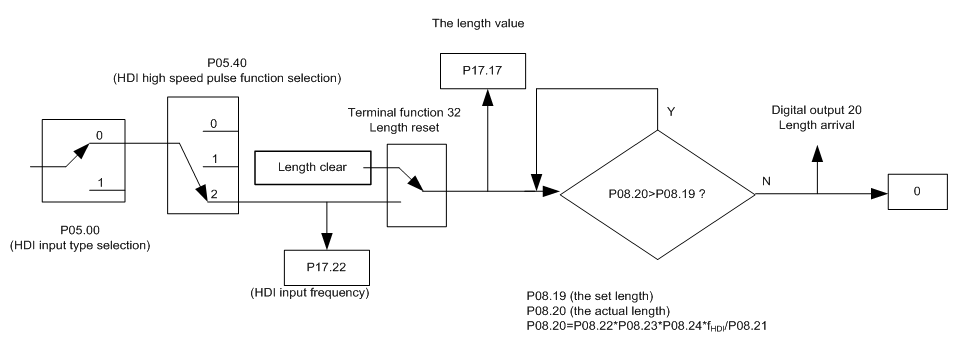

Goodrive310-UL series VFDs support fixed-length control function which can input length counting pulse through HDI, and then count the actual length according to the internal counting formula. If the actual length is longer than or equal to the set length, the digital output terminal can output the length arrival pulse signal of 200ms and the corresponding length will clear automatically.
Note: the length arrival belongs to pulse output and the lasting time is 200ms.
Function code | Name | Detailed instruction of parameters | Default value |
P05.00 | HDI input selection | 0: High pulse input. 1: Digital input. | 0 |
P05.49 | HDI high-speed pulse input function selection | 0: Frequency setting input 1: Counter input 2: Length counting input | 0 |
P05.01– P05.09 | Digital input function selection | 32: Length reset | |
P06.01– P06.04 | Digital output function selection | 20: Length arrival | |
P08.19 | Setting length | 0–65535m | 0 |
P08.20 | Actual length | 0–65535m | 0 |
P08.21 | Pulse per rotation | 1–10000 | 1 |
P08.22 | Axle perimeter | 0.01–100.00cm | 10.00 |
P08.23 | Length ratio | 0.001–10.000 | 1.000 |
P08.24 | Length correcting coefficient | 0.001–1.000 | 1.000 |
P17.17 | Length | 0–65535 | 0 |
P17.22 | HDI input frequency | Display HDI input frequency Range: 0.00–50.00kHz | 0.00 kHz |
