C.5.1 Wall installation

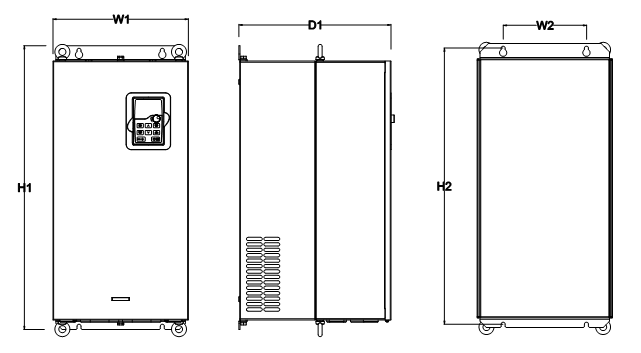

Wall installation of 575V 18.5–110kW VFDs
Wall installation dimension of 575V 18.5–110kW VFDs (unit: mm)
Model | W1 | W2 | H1 | H2 | D1 | Installation hole |
GD310-(018G-037G)-6-UL | 270 | 130 | 555 | 540 | 325 | 7 |
GD310-(045G-110G)-6-UL | 325 | 200 | 680 | 661 | 365 | 9.5 |
C.5.2 Flange installation

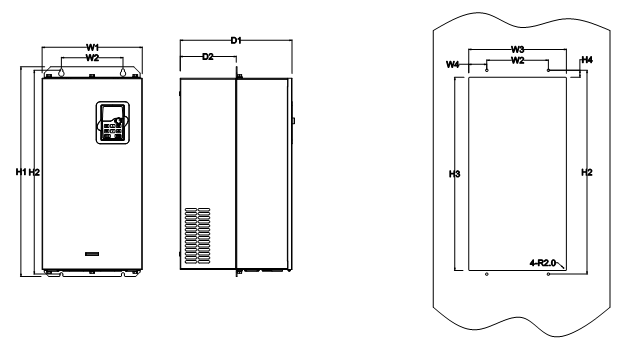

Flange installation of 575V 18.5–110kW VFDs
Flange installation dimension of 575V 18.5–110kW VFDs (unit: mm)
Model | W1 | W2 | W3 | W4 | H1 | H2 | H3 | H4 | D1 | D2 | Installation hole |
GD310-(018G-037G)-6-UL | 270 | 130 | 261 | 65.5 | 555 | 540 | 516 | 17 | 325 | 167 | 7 |
GD310-(045G-110G)-6-U | 325 | 200 | 317 | 58.5 | 680 | 661 | 626 | 23 | 363 | 182 | 9.5 |
