Goodrive310-UL series VFDs have embedded C3 filters which can be connected by J10.
Note: Do not connect C3 filters in IT power system.
The input interference filter can decrease the interference of the VFD to the surrounding equipment.
Output interference filter can decrease the radio noise cause by the cables between the VFD and the motor and the leakage current of the conducting wires.
Our company configured some filters for the convenient of the users.

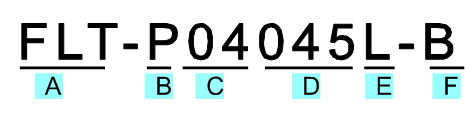

D.7.1 Filter type instruction
Character designation | Detailed instruction |
A | FLT: VFD filter series |
B | Filter type P: power supply filter L: output filter |
C | Voltage degree 04: AC 3PH 380V–480V 06: AC 3PH 520V–600V |
D | 3 bit rated current code “015” means 15A |
E | Installation type L: Common type H: High performance type |
F | Utilization environment of the filters A: the first environment (IEC61800-3:2004) category C1 (EN 61800-3:2004) B: the first environment (IEC61800-3:2004) category C2 (EN 61800-3:2004) C: the second environment (IEC61800-3:2004) category C3 (EN 61800-3:2004) |
D.7.2 Filter type
Model | Input filter | Output filter |
GD310-0R7G-2-UL | FLT-P04006L-B | FLT-L04006L-B |
GD310-1R5G-2-UL | FLT-P04016L-B | FLT-L04016L-B |
GD310-2R2G-2-UL | ||
GD310-004G-2-UL | FLT-P04032L-B | FLT-L04032L-B |
GD310-5R5G-2-UL | ||
GD310-7R5G-2-UL | FLT-P04045L-B | FLT-L04045L-B |
GD310-011G-2-UL | FLT-P04065L-B | FLT-L04065L-B |
GD310-015G-2-UL | ||
GD310-018G-2-UL | FLT-P04100L-B | FLT-L04100L-B |
GD310-022G-2-UL | ||
GD310-030G-2-UL | FLT-P04150L-B | FLT-L04150L-B |
GD310-037G-2-UL | ||
GD310-045G-2-UL | FLT-P04200L-B | FLT-L04200L-B |
GD310-055G-2-UL | FLT-P04250L-B | FLT-L04250L-B |
GD310-1R5G-4-UL | FLT-P04006L-B | FLT-L04006L-B |
GD310-2R2G-4-UL | ||
GD310-004G-4-UL | FLT-P04016L-B | FLT-L04016L-B |
GD310-5R5G-4-UL | ||
GD310-7R5G-4-UL | FLT-P04032L-B | FLT-L04032L-B |
GD310-011G-4-UL | ||
GD310-015G-4-UL | FLT-P04045L-B | FLT-L04045L-B |
GD310-018G-4-UL | ||
GD310-022G-4-UL | FLT-P04065L-B | FLT-L04065L-B |
GD310-030G-4-UL | ||
GD310-037G-4-UL | FLT-P04100L-B | FLT-L04100L-B |
GD310-045G-4-UL | ||
GD310-055G-4-UL | FLT-P04150L-B | FLT-L04150L-B |
GD310-075G-4-UL | ||
GD310-090G-4-UL | FLT-P04200L-B | FLT-L04200L-B |
GD310-110G-4-UL | FLT-P04250L-B | FLT-L04250L-B |
GD310-132G-4-UL | ||
GD310-160G-4-UL | FLT-P04400L-B | FLT-L04400L-B |
GD310-185G-4-UL | ||
GD310-200G-4-UL | ||
GD310-220G-4-UL | FLT-P04600L-B | FLT-L04600L-B |
GD310-250G-4-UL | ||
GD310-280G-4-UL | ||
GD310-315G-4-UL | FLT-P04800L-B | FLT-L04800L-B |
GD310-350G-4-UL | ||
GD310-400G-4-UL | ||
GD310-500G-4-UL | FLT-P041000L-B | FLT-L041000L-B |
GD310-5R5P-4-UL | FLT-P04016L-B | FLT-L04016L-B |
GD310-7R5P-4-UL | ||
GD310-011P-4-UL | FLT-P04032L-B | FLT-L04032L-B |
GD310-015P-4-UL | ||
GD310-018P-4-UL | FLT-P04045L-B | FLT-L04045L-B |
GD310-022P-4-UL | ||
GD310-030P-4-UL | FLT-P04065L-B | FLT-L04065L-B |
GD310-037P-4-UL | ||
GD310-045P-4-UL | FLT-P04100L-B | FLT-L04100L-B |
GD310-055P-4-UL | ||
GD310-075P-4-UL | FLT-P04150L-B | FLT-L04150L-B |
GD310-090P-4-UL | ||
GD310-110P-4-UL | FLT-P04200L-B | FLT-L04200L-B |
GD310-132P-4-UL | FLT-P04250L-B | FLT-L04250L-B |
GD310-160P-4-UL | ||
GD310-185P-4-UL | FLT-P04400L-B | FLT-L04400L-B |
GD310-200P-4-UL | ||
GD310-220P-4-UL | ||
GD310-250P-4-UL | FLT-P04600L-B | FLT-L04600L-B |
GD310-280P-4-UL | ||
GD310-315P-4-UL | ||
GD310-350P-4-UL | FLT-P04800L-B | FLT-L04800L-B |
GD310-400P-4-UL | ||
GD310-500P-4-UL | ||
GD310-018G-6-UL | FLT-P06050H-B | FLT-L06050H-B |
GD310-022G-6-UL | ||
GD310-030G-6-UL | ||
GD310-037G-6-UL | FLT-P06100H-B | FLT-L06100H-B |
GD310-045G-6-UL | ||
GD310-055G-6-UL | ||
GD310-075G-6-UL | ||
GD310-090G-6-UL | FLT-P06200H-B | FLT-L06200H-B |
GD310-110G-6-UL |
Note:
1. The input EMI meet the requirement of C2 after installing input filters.
2. Above options are external, the customer should indicate when purchasing.
3. Do not connect C3 filters in IT power system.
