P04.00

Motor 1

V/F

curve

setting

These function codes define the V/F curve of Goodrive35   motor 1 to meet the need of different loads.

0: Straight line V/F curve; applying to the   constant torque load

1: Multi-dots V/F curve

2: 1.3^th power low torque V/F curve

3: 1.7^th power low torque V/F curve

4: 2.0^th power low torque V/F curve

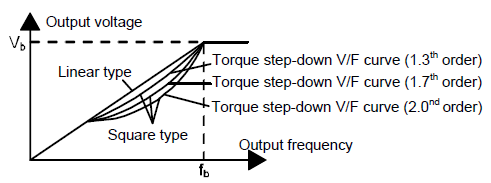

Curves 2–4 apply to the torque loads such as fans   and water pumps. Users can adjust according to the features of the loads to   achieve a best energy-consuming effect.

5: Customized V/F (V/F separation); on this mode,   V and F can be separated from f and f can be adjusted through the frequency   given channel set by P00.06 or the voltage given channel set by P04.27 to   change the feature of the curve.

Note: V_b in the below picture is the motor rated   voltage and f_b is the motor rated frequency.

0

◎

P04.01

Torque

 boost

of motor

 1

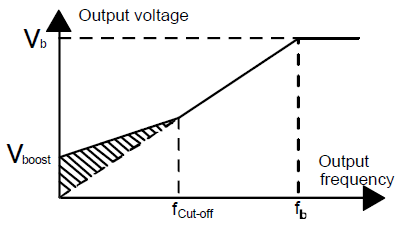

Torque boost to the output voltage for the   features of low frequency torque. P04.01 is for the Max Output voltage   V_b.

P04.02 defines the percentage of closing frequency   of manual torque to f_b.

Torque boost should be selected according to the   load. The bigger the load is, the bigger the boost is. Too big torque boost   is inappropriate because the motor will run with over-magnetic, and the   current of the VFD will increase to raise the temperature of the VFD and   decrease the efficiency.

When the torque boost is set to 0.0%, the VFD is   automatic torque boost.

Torque boost threshold: under the threshold, the   torque boost is valid, but over the threshold, the torque boost is invalid.

The setting range of P04.01: 0.0%: (automatic)   0.1%–10.0%

The setting range of P04.02: 0.0%–50.0%

0.0%

○

P04.02

Torque

boost

close of

motor 1

20.0%

○

P04.03

V/F

frequency

 1 of

motor 1

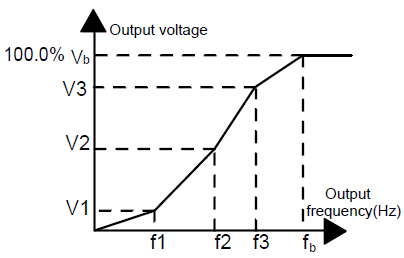

When P04.00 =1, the user can set V//F curve   through P04.03–P04.08.

V/F is   generally set according to the load of the motor.

Note: V1＜ V2＜ V3,f1＜f2＜f3. Too   high low frequency voltage will heat the motor excessively or cause damage.   The VFD may stall when overcurrent or overcurrent protection.

The setting range of P04.03: 0.00 Hz–P04.05

The setting range of P04.04: 0.0%–110.0%

The setting range of P04.05: P04.03–P04.07

The setting range of P04.06: 0.0%–110.0% (the rated voltage of motor 1)

The setting range of P04.07: P04.05–P02.02 (the rated frequency of   motor 1) or P04.05–P02.16 (the rated frequency of motor 1)

The setting range of P04.08: 0.0%–110.0% (the rated voltage of motor 1)

0.00 Hz

○

P04.04

V/F

voltage

 1 of

motor 1

0.0%

○

P04.05

V/F

frequency

 2 of

motor 1

0.00 Hz

○

P04.06

V/F

voltage 2

 of motor

 1

0.0%

○

P04.07

V/F

frequency

 3 of

motor 1

0.00 Hz

○

P04.08

V/F

voltage

 3 of

motor 1

0.0%

○

P04.09

V/F slip

compensa

tion

gain of

motor 1

This function code is used to compensate the   change of the rotation speed caused by load during compensation SVPWM control   to improve the rigidity of the motor. It can be set to the rated slip   frequency of the motor which is counted as below:

△f=f_b-n*p/60

Of which, f_b is the rated frequency of   the motor, its function code is P02.02; n is the rated rotating speed of the   motor and its function code is P02.03; p is the pole pair of the motor.   100.0% corresponds to the rated slip frequency△f.

Setting range: 0.0–200.0%

100.0%

○

P04.10

Vibration

control

factor

at low

 frequency

 of motor 1

In SVPWM control mode, current fluctuation may   occur to the motor at some frequency, especially the motor with big power.   The motor cannot run stably or overcurrent may occur. These phenomena can be   canceled by adjusting this parameter.

The setting range of P04.10: 0–100

The setting range of P04.11: 0–100

The setting range of P04.12: 0.00 Hz–P00.03   (max. output frequency)

10

○

P04.11

Vibration

control

factor

at high

frequency

 of motor 1

10

○

P04.12

Vibration

control

threshold

of motor 1

30.00 Hz

○

P04.13

Motor

2 V/F

curve

This group of parameters defines the V/F setting   means of Goodrive35 motor 2 to meet various requirements of different loads.   See P04.00–P04.12 for the detailed function code   instruction.

Note: P04 group includes two sets of V/F parameters of   the motor which cannot display simultaneously. Only the selected V/F   parameter can be shown. The motor selection can be defined by terminals   function "the shift between motor 1 and motor 2"

0

◎

P04.14

Torque

boost

of motor 2

0.0%

○

P04.15

Torque

boost

close of

 motor 2

20.0%

○

P04.16

V/F

frequency

 1 of

motor 2

0.00 Hz

○

P04.17

V/F

voltage

 1 of

motor 2

0.0%

○

P04.18

V/F

frequency

 2 of

motor 2

0.00 Hz

○

P04.19

V/F

voltage

 2 of

motor 2

0.0%

○

P04.20

V/F

frequency

 3 of

motor 2

0.00 Hz

○

P04.21

V/F

voltage

 3 of

motor 2

0.0%

○

P04.22

V/F

slip

compensa

tion

gain of

motor 2

100.0%

○

P04.23

Vibration

control

 factor

 at low

 frequency

 of motor

2

In SVPWM control   mode, current fluctuation may occur to the motor on some frequency,   especially the motor with big power. The motor cannot run stably or   overcurrent may occur. These phenomena can be canceled by adjusting this   parameter.

The setting range of P04.23: 0–100

The setting range of P04.24: 0–100

The setting range of P04.25: 0.00 Hz–P00.03   (max. output frequency)

10

○

P04.24

Vibration

control

 factor

at high

 frequency

 of motor

 2

10

○

P04.25

Vibration

control

 threshold

of motor

 2

30.00 Hz

○

P04.26

Energy-saving operation

0: No operation

1: Automatic energy-saving operation (reserved)

Motors will automatically adjust the output   voltage to save energy when light loads.

0

◎

P04.27

Voltage setting

Select the output setting channel at V/F curve   separation.

0: Keypad: the output voltage is determined   by P04.28.

1: AI1 ;

2: AI2;

3: AI3;

4: HDI;

5: Multi-step speed;

6: PID;

7: Modbus communication;

8: PROFIBUS/CANopen communication;

9: Ethernet communication;

10: Reserved

Note: 100% corresponds to   the rated motor voltage.

0

○

P04.28

Keypad setting voltage

The function code is the voltage displaying when   the voltage is set through keypad.

The setting range: 0.0%–100.0%

100.0%

○

P04.29

Voltage increasing time

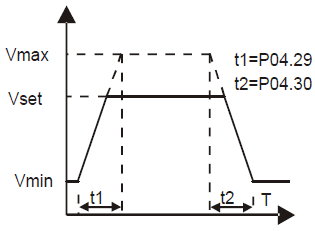

Voltage   increasing time is the time when the VFD accelerates from the output minimum   voltage to the output maximum voltage.

Voltage   decreasing time is the time when the VFD decelerates from the output maximum   voltage to the output minimum voltage.

The setting range: 0.0–3600.0s

5.0 s

○

P04.30

Voltage decreasing time

5.0 s

○

P04.31

Maximum output voltage

Set the upper and low limit of the output voltage.

The setting range of P04.31: P04.32–100.0%   (the rated voltage of the motor)

The setting range of P04.32: 0.0%–P04.31

100.0%

◎

P04.32

Minimum output voltage

0.0%

◎
