Goodrive35 series VFDs can set the frequency by various means. The given channel can be divided into main given channel and assistant given channel.

There are two main given channels: A frequency given channel and B frequency given channel. These two given channels can carry out mutual simple math calculation between each other. And the given channels can be shifted dynamically through set multi-function terminals.

There are three assistant given channels: keypad UP/DOWN input, terminals UP/DOWN switch input and digital potentiometer input. The three ways equal to the effect of input UP/DOWN given in internal assistant given of the VFD. The user can enable the given method and the effect of the method to the frequency given by setting function codes.

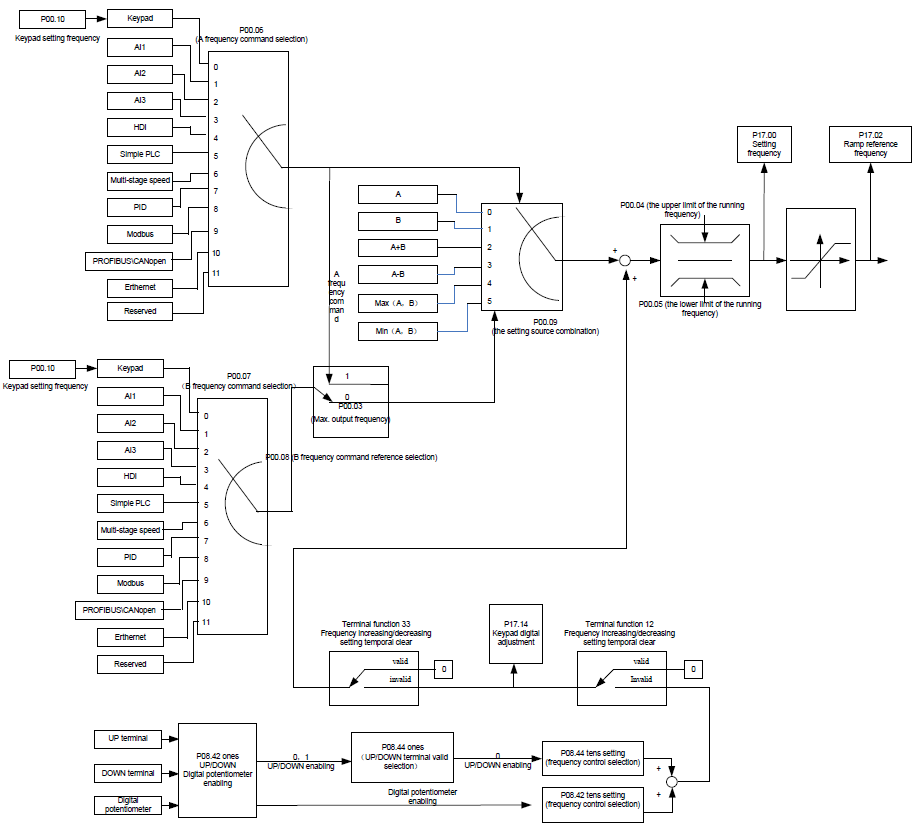

The actual given of the VFD is consisted of main given channel and assistant given channel.


Goodrive35 series VFDs support the shifting between different given channels, and the detailed shifting rules is as below:

Current reference    channel

P00.09

Multi-function    terminal function 13

Switch from    A channel to B channel

Multi-function    terminal function 14

Switch from    combination setting to A channel

Multi-function    terminal function 15

Switch from    combination setting to B channel

A

B

/

/

B

/

/

/

A+B

/

A

B

A-B

/

A

B

Max (A, B)

/

A

B

Min (A, B)

/

A

B

Note: "/" means the multi-function terminal is invalid under the current given channel.

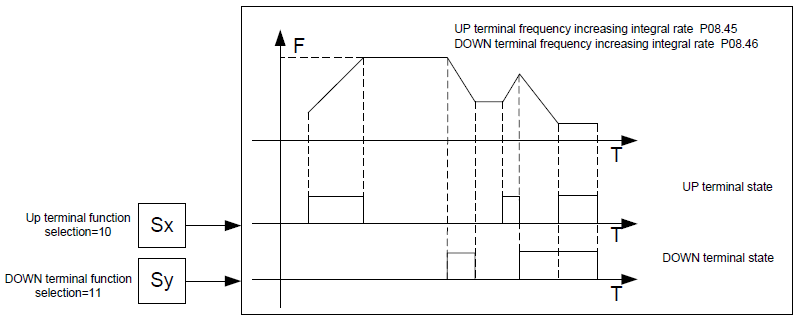

When select multi-function terminal UP (10) and DOWN (11) to set the internal assistant frequency, P08.44 and P08.45 can be set to increase or decrease the set frequency quickly.


Relative parameters list:

Function    code

Name

Detailed instruction of parameters

Default    value

P00.03

Max. output frequency

P00.04–400.00 Hz

50.00 Hz

P00.04

Upper limit of the running frequency

P00.05–P00.03

50.00 Hz

P00.05

Lower limit of the running frequency

0.00 Hz–P00.04

0.00 Hz

P00.06

A frequency command

0: Keypad

1: AI1

2: AI2

3: AI3

4: High-speed   pulse HDI setting

5: Simple   PLC program setting

6: Multi-step speed running setting

7: PID control setting

8: Modbus   communication setting

9: PROFIBUS/CANopen   communication setting

10: Ethernet   communication setting

11: Reserved

12: Pulse   string AB setting

0

P00.07

B frequency command

2

P00.08

B frequency command reference

0: Maximum output frequency

1: A frequency command

0

P00.09

Combination of the setting source

0: A

1: B

2: (A+B) combination

3: (A-B) combination

4: Max (A, B) combination

5: Min (A, B) combination

0

P05.01–P05.09

Multi-function digital input terminals

 (S1–S8,HDI) function selection

10: Increasing frequency setting (UP)

11: Decreasing frequency setting (DOWN)

12: Cancel the frequency change setting

13: Shift between A setting and B setting

14: Shift between combination setting and A   setting

15: Shift   between combination setting and B setting


P08.42

Keypad data control

0x000–0x1223

LED ones: Frequency enable selection

0: Both ∧/∨ keys and digital potentiometer adjustments are valid

1: Only ∧/∨ keys adjustment is valid

2: Only digital potentiometer adjustments is valid

3: Neither ∧/∨ keys nor   digital potentiometer adjustments are valid

LED tens: Frequency control selection

0: Only valid   when P00.06=0 or P00.07=0

1: Valid   for all frequency setting manner

2: Invalid   for multi-step speed when multi-step speed has the priority

LED hundreds: Action during stopping

0: Setting is valid

1: Valid during running, cleared after   stopping

2: Valid during running, cleared after   receiving the stop command

LED thousands: ∧/∨ keys and digital potentiometer Integral function

0: The Integral function is valid

1: The Integral function is invalid

0x0000

P08.43

Integral ratio of   the keypad potentiometer

0.01–10.00 Hz/s

0.10 Hz/s

P08.44

UP/DOWN terminals   control

0x00–0x221

LED ones: Frequency control selection

0: UP/DOWN terminals setting valid

1: UP/DOWN terminals setting valid

LED tens: Frequency control selection

0: Only valid when P00.06=0 or P00.07=0

1: All frequency means are valid

2: Invalid for multi-step speed when   multi-step speed takes priority

LED hundreds: Action selection when stop

0: Setting valid

1: Valid in the running, clear after stop

2: Valid in the running, clear after   receiving the stop commands

0x000

P08.45

UP terminals frequency changing ratio

0.01–50.00 Hz/s

0.50 Hz/s

P08.46

DOWN terminals frequency changing ratio

0.01–50.00 Hz/s

0.50 Hz/s

P17.00

Setting frequency

Range: 0.00   Hz–P00.03 (max. output frequency)

0.00 Hz

P17.02

Ramp reference frequency

Range: 0.00   Hz–P00.03 (max. output frequency)

0.00 Hz

P17.14

Digital   adjustment

0.00 Hz–P00.03

0.00 Hz
