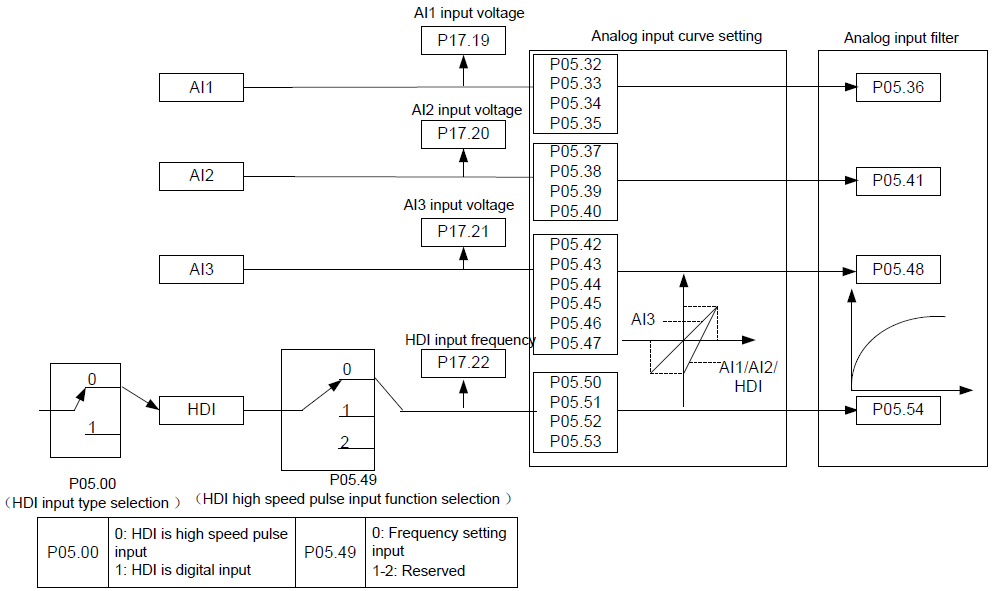

Goodrive300 series VFDs have three analog input terminals and 1 high-speed pulse input terminals (of which, AI1 and AI2 are 0–10V/0–20mA and Al can select voltage input or current input by J3, AI2 can select voltage input or current input by J4 and AI3 is for -10–10V) as the standard configuration. The inputs can be filtered and the maximum and minimum values can be adjusted.
Related parameters
Function code | Name | Detailed instruction of parameters | Default value |
P05.00 | HDI input selection | 0: High pulse input. 1: Digital input. | 0 |
P05.32 | Lower limit of AI1 | 0.00V–P05.34 | 0.00V |
P05.33 | Corresponding setting of the lower limit of AI1 | -100.0%–100.0% | 0.0% |
P05.34 | Upper limit of AI1 | P05.32–10.00V | 10.00V |
P05.35 | Corresponding setting of the upper limit of AI1 | -100.0%–100.0% | 100.0% |
P05.36 | AI1 input filter time | 0.000s–10.000s | 0.100s |
P05.37 | Lower limit of AI2 | 0.00V–P05.39 | 0.00V |
P05.38 | Corresponding setting of the lower limit of AI2 | -100.0%–100.0% | 0.0% |
P05.39 | Upper limit of AI2 | P05.37–10.00V | 10.00V |
P05.40 | Corresponding setting of the upper limit of AI2 | -100.0%–100.0% | 100.0% |
P05.41 | AI2 input filter time | 0.000s–10.000s | 0.100s |
P05.42 | Lower limit of AI3 | -10.00V–P05.44 | -10.00V |
P05.43 | Corresponding setting of the lower limit of AI3 | -100.0%–100.0% | -100.0% |
P05.44 | Middle value of AI3 | P05.42–P05.46 | 0.00V |
P05.45 | Corresponding middle setting of AI3 | -100.0%–100.0% | 0.0% |
P05.46 | Upper limit of AI3 | P05.44–10.00V | 10.00V |
P05.47 | Corresponding setting of the upper limit of AI3 | -100.0%–100.0% | 100.0% |
P05.48 | AI3 input filter time | 0.000s–10.000s | 0.100s |
P05.49 | HDI high-speed pulse input function selection | 0: Frequency setting input, frequency setting source 1: Counter input, high-speed pulse counter input terminals 2: Length counting input, length counter input terminals | 0 |
P05.50 | Lower limit frequency of HDI | 0.000kHz–P05.52 | 0.000kHz |
P05.51 | Corresponding setting of HDI low frequency setting | -100.0%–100.0% | 0.0% |
P05.52 | Upper limit frequency of HDI | P05.50–50.000kHz | 50.000 kHz |
P05.53 | Corresponding setting of upper limit frequency of HDI | -100.0%–100.0% | 100.0% |
P05.54 | HDI frequency input filter time | 0.000s–10.000s | 0.100s |
