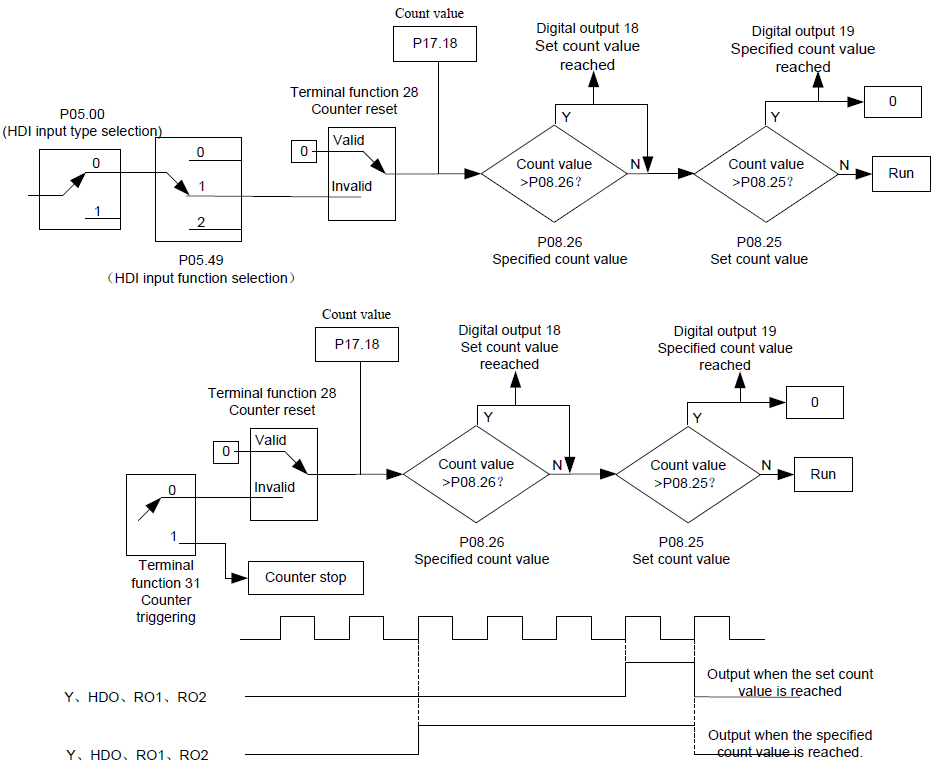

Goodrive300 series VFDs support pulse counter which can input counting pulse through HDI terminal. When the actual length is longer than or equal to the set length, the digital output terminal can output length arrival pulse signal and the corresponding length will clear automatically.
Function code | Name | Detailed instruction of parameters | Default value |
P05.00 | HDI input selection | 0: High-speed pulse input. 1: Digital input. | 0 |
P05.49 | HDI high-speed pulse input function selection | 0: Frequency setting input 1: Counter input 2: Length counting input | 0 |
P05.01– P05.09 | Digital input function selection | 28:Counter reset 31:Counter trigger | |
P06.01– P06.04 | Digital output function selection | 18: Set count value reached 19: Specified count value reached | |
P08.25 | Set count value | P08.26–65535 | 0 |
P08.26 | Specified count value | 0–P08.25 | 0 |
P17.18 | Count value | 0–65535 | 0 |
