P10.00

Simple PLC

0: Stop after running once. The VFD has to be commanded again after finishing a cycle.

1: Run at the final value after running   once. After finish a signal, the VFD will keep the running frequency and   direction of the last run.

2: Cycle running. The VFD will keep on running until receiving a stop command d. And then, the system will stop.

0

○

P10.01

Simple PLC memory

0: Power loss without memory

1: Power loss with memory; PLC record the running stage and frequency when power loss.

0

○

P10.02

Multi-step speed 0

The frequency setting range of stage 0–15: -100.0–100.0%，100.0% of the frequency setting corresponds to the Max. Frequency P00.03.

The operation time setting of stage 0–15: the time   unit is determined by P10.37. When selecting simple PLC running, set P10.02–P10.33   to define the running frequency and time of all stages.

Note: The symbol of multi-step determines the running direction of simple PLC. The negative value means reverse rotation.

If multi-step speed operation is selected, multi-step speeds are in the range of --f_max–f_max and it can be set continuously.

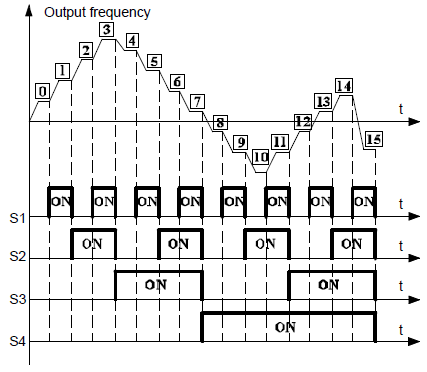

Goodrive300 series VFDs can set 16 stages speed, selected by the combination of multi-step terminals 1–4 (select the setting   by S terminals, the corresponding function codes are P05.01–P05.09), corresponding to the speed 1 to speed 15.

When terminal 1, terminal 2, terminal 3, terminal 4=OFF,   the frequency input manner is selected via code P00.06 or P00.07. When   terminal 1, terminal 2, terminal 3, terminal 4 aren’t off, it runs at multi-step   which takes precedence of keypad, analog value, high-speed pulse, PLC,   communication frequency input.

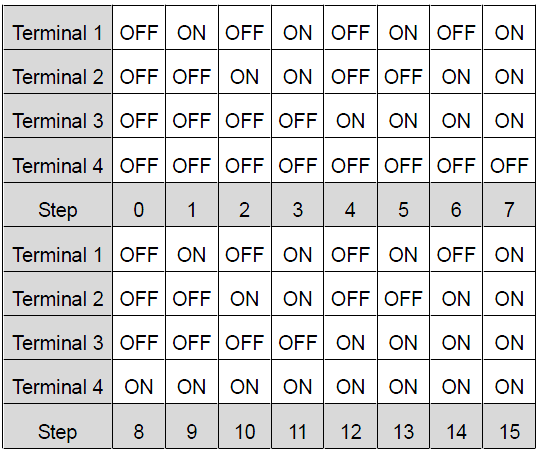

The relationship between terminal 1, terminal 2, terminal 3, terminal 4 and multi-step speed is as following:

0.0%

○

P10.03

Running time of step  0

0.0s

○

P10.04

Multi-step speed 1

0.0%

○

P10.05

Running time of step 1

0.0s

○

P10.06

Multi-step speed 2

0.0%

○

P10.07

Running time of step 2

0.0s

○

P10.08

Multi-step speed 3

0.0%

○

P10.09

Running time of step 3

0.0s

○

P10.10

Multi-step speed 4

0.0%

○

P10.11

Running time of step 4

0.0s

○

P10.12

Multi-step speed 5

0.0%

○

P10.13

Running time of step 5

0.0s

○

P10.14

Multi-step speed 6

0.0%

○

P10.15

Running time of step 6

0.0s

○

P10.16

Multi-step speed 7

0.0%

○

P10.17

Running time of step 7

0.0s

○

P10.18

Multi-step speed 8

0.0%

○

P10.19

Running time of step 8

0.0s

○

P10.20

Multi-step speed 9

0.0%

○

P10.21

Running time of step 9

0.0s

○

P10.22

Multi-step speed 10

0.0%

○

P10.23

Running time of step 10

0.0s

○

P10.24

Multi-step speed 11

0.0%

○

P10.25

Running time of step 11

0.0s

○

P10.26

Multi-step speed 12

0.0%

○

P10.27

Running time of step 12

0.0s

○

P10.28

Multi-step speed 13

0.0%

○

P10.29

Running time of step 13

0.0s

○

P10.30

Multi-step speed 14

0.0%

○

P10.31

Running time of step 14

0.0s

○

P10.32

Multi-step speed 15

0.0%

○

P10.33

Running time of step 15

0.0s

○

P10.34

Simple PLC 0–7 step ACC/DEC time

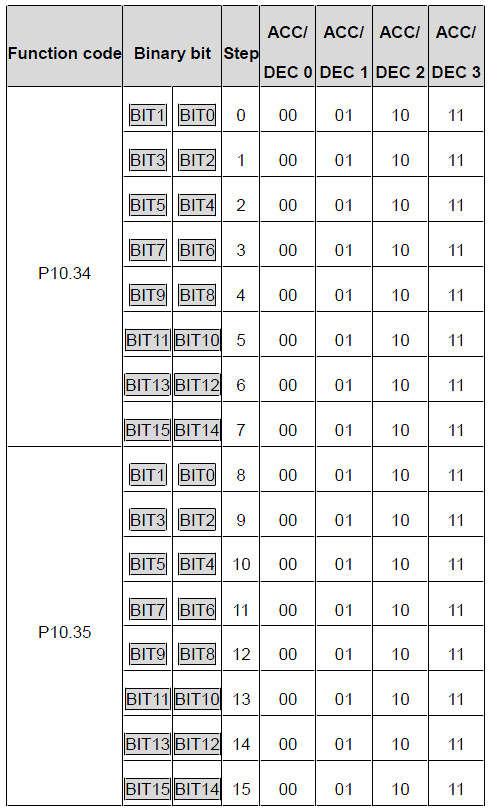

Below is the   detailed instruction:

After users select the corresponding ACC/DEC   time, the combining 16 binary bit can   be changed into hexadecimal bit, and then set the corresponding function codes.

ACC/DEC time 1 is set by P00.11 and P00.12;

ACC/DEC time 2 is set by P08.00 and P08.01;

ACC/DEC time 3 is set by P08.02 and P08.03;

ACC/DEC time 4 is set by P08.04 and P08.05.

Setting range: -0x0000–0xFFFF

0x0000

○

P10.35

Simple PLC 8–15 step ACC/DEC time

0x0000

○

P10.36

PLC restart

0: Restart from the first step; stop during running (cause by the stop command, fault or power loss), run from the first stage after restart.

1: Continue to run from the stop frequency; stop during running(cause by stop command and fault), the VFD will record the   running time automatically, enter into the stage after restart and keep the remaining running at the setting frequency.

0

◎

P10.37

Multi-step time unit

0: Seconds; the running time of all steps is counted by second

1: Minutes; the running time of all steps   is counted by minute

0

◎
