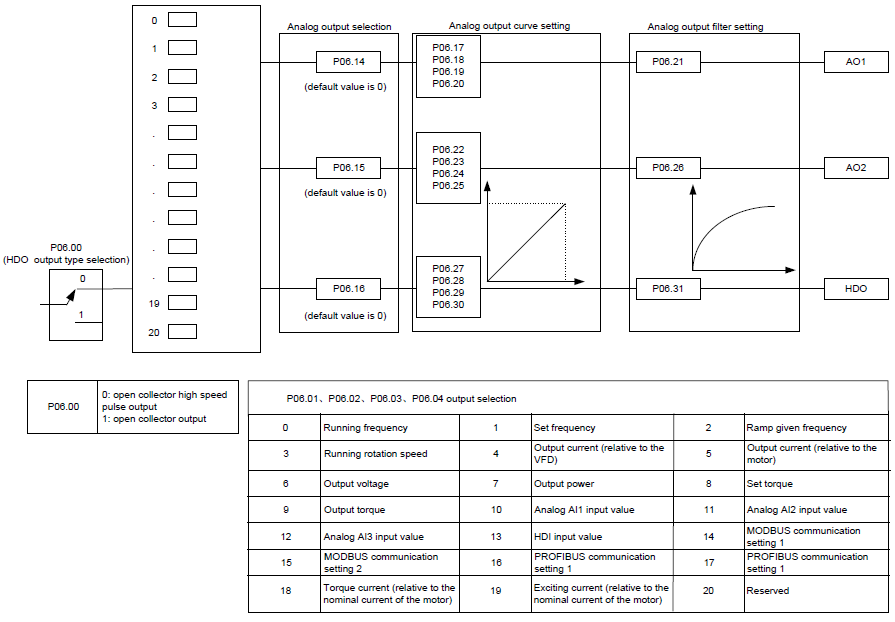

Goodrive35 series VFDs have 2 analog output terminals (0–10 V or 0–20mA) and 1 high speed pulse output terminal. Analog output signal can be filtered and the maximum and minimum values can be adjusted. The analog output signals can be proportional to motor speed, output frequency, output current, motor torque, motor power, etc. 100% of the output current is relative to 2 times of the rated current of the VFD.
Output instructions:
Function | Instructions | |
0 | Running frequency | 0–max. output frequency |
1 | Set frequency | 0–max. output frequency |
2 | Ramp reference frequency | 0–max. output frequency |
3 | Running speed | 0–2 times of the rated synchronous rotation speed of the motor |
4 | Output current (relative to the VFD) | 0–2 times of rated current of the VFD |
5 | Output current (relative to the motor) | 0–2 times of rated current of the VFD |
6 | Output voltage | 0–1.5 times of the rated VFD voltage |
7 | Output power | 0–2 times of the rated power |
8 | Setting torque value | 0–2 times of rated current of the motor |
9 | Output torque | 0–2 times of rated current of the motor |
10 | AI1 | 0–10 V/0–20 mA |
11 | AI2 | 0–10 V/0–20 mA |
12 | AI3 | -10 V–10 V |
13 | HDI | 0.00–50.00 kHz |
14 | Setting value 1 of Modbus communication | -1000–1000, 1000 corresponds to 100.0% |
15 | Setting value 2 of Modbus communication | -1000–1000, 1000 corresponds to 100.0% |
16 | Setting value 1 of PROFIBUS/CANopen communication | -1000–1000, 1000 corresponds to 100.0% |
17 | Setting value 2 of PROFIBUS/CANopen communication | -1000–1000, 100 corresponds to 100.0% |
18 | Setting value 1 of Ethernet communication | -1000–1000, 1000 corresponds to 100.0% |
19 | Setting value 2 of Ethernet communication | -1000–1000, 100 corresponds to 100.0% |
20–21 | Reserved | |
22 | Torque current (bipolar, 100% corresponds to 10 V) | 0–2 times of the rated current of the motor |
23 | Exciting current (100% corresponds to 10 V) | 0–1 time of the rated current of the motor |
24 | Setting frequency (bipolar) | 0–max. output frequency |
25 | Ramp reference frequency (bipolar) | 0–max. output frequency |
26 | Operation speed (bipolar) | 0–max. output frequency |
27–30 | Reserved |
Relative parameters list:
Function code | Name | Detailed instruction of parameters | Default value | |
P06.00 | HDO output | 0: Open collector pole high speed pulse output 1: Open collector pole output. | 0 | |
P06.14 | AO1 output | 0: Running frequency 1: Set frequency 2: Ramps reference frequency 3: Running speed 4: Output current (relative to 2 times the rated current of the VFD) 5: Output current (relative to 2 times the rated current of the motor) 6: Output voltage (relative to 1.5 times the rated voltage of the VFD) 7: Output power (relative to 2 times the rated power of the motor) 8: Set torque value (relative to 2 times the rated torque of the motor) 9: Output torque (relative to 2 times the rated torque of the motor) 10: Analog AI1 input value 11: Analog AI2 input value 12: Analog AI3 input value 13: Input value of high-speed pulse HDIA 14: Set value 1 of Modbus communication 15: Set value 2 of Modbus communication 16: Set value 1 of PROFIBUS\CANopen communication 17: Set value 2 of PROFIBUS\CANopen communication 18: Set value 1 of Ethernet communication 19: Set value 2 of Ethernet communication 20–21: Reserved 22: Torque current (bipolar, 100% corresponds to 10 V) 23: Excitation current (100% corresponds to 10 V) 24: Setting frequency (bipolar) 25: Ramp reference frequency (bipolar) 26: Operation speed (bipolar) 27: Reserved | 0 | |
P06.15 | AO2 output | 0 | ||
P06.16 | HDO high-speed pulse output | 0 | ||
P06.17 | Lower output limit of AO1 | -300.0%–P06.19 | 0.0% | |
P06.18 | Corresponding AO1 output of lower limit | 0.00 V–10.00 V | 0.00 V | |
P06.19 | Upper output limit of AO1 | P06.13–300.0% | 100.0% | |
P06.20 | Corresponding AO1 output of upper limit | 0.00 V–10.00 V | 10.00 V | |
P06.21 | AO1 output filter time | 0.000 s–10.000 s | 0.000 s | |
P06.22 | Lower output limit of AO2 | -300.0%–P06.24 | 0.0% | |
P06.23 | Corresponding AO2 output of lower limit | 0.00 V–10.00 V | 0.00 V | |
P06.24 | Upper output limit of AO2 | P06.18–300.0% | 100.0% | |
P06.25 | The corresponding AO2 output of upper limit | 0.00 V–10.00 V | 10.00 V | |
P06.26 | AO2 output filter time | 0.000 s–10.000 s | 0.000 s | |
P06.27 | Lower output limit of HDO | -300.0%–P06.29 | 0.0% | |
P06.28 | Corresponding HDO output of lower limit | 0.00–50.00 kHz | 0.0 kHz | |
P06.29 | Upper output limit of HDO | P06.23–300.0% | 100.0% | |
P06.30 | Corresponding HDO output of upper limit | 0.00–50.00 kHz | 50.00 kHz | |
P06.31 | HDO output filter time | 0.000 s–10.000 s | 0.000 s |
